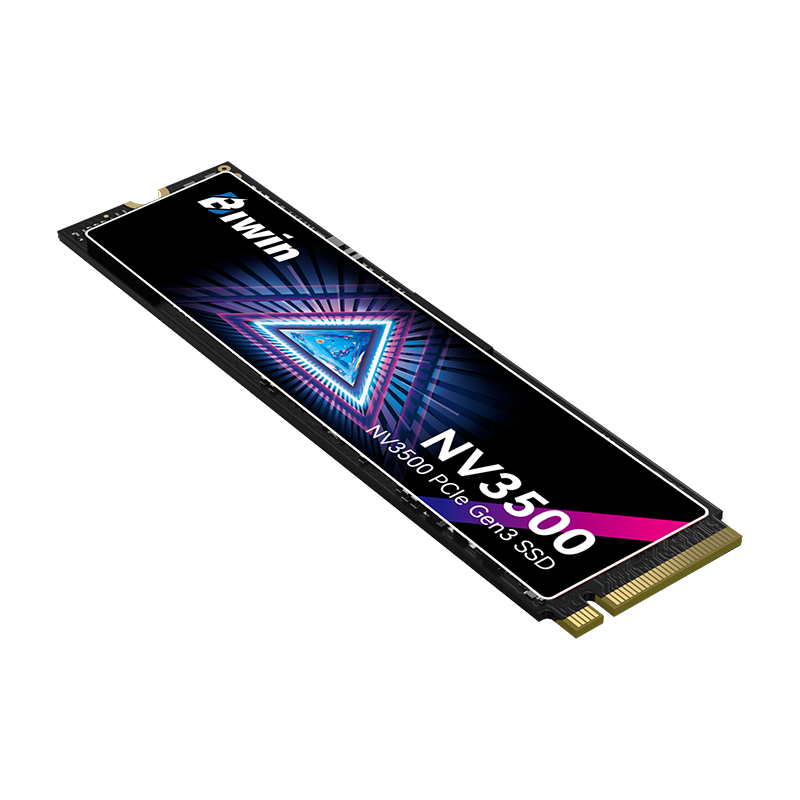

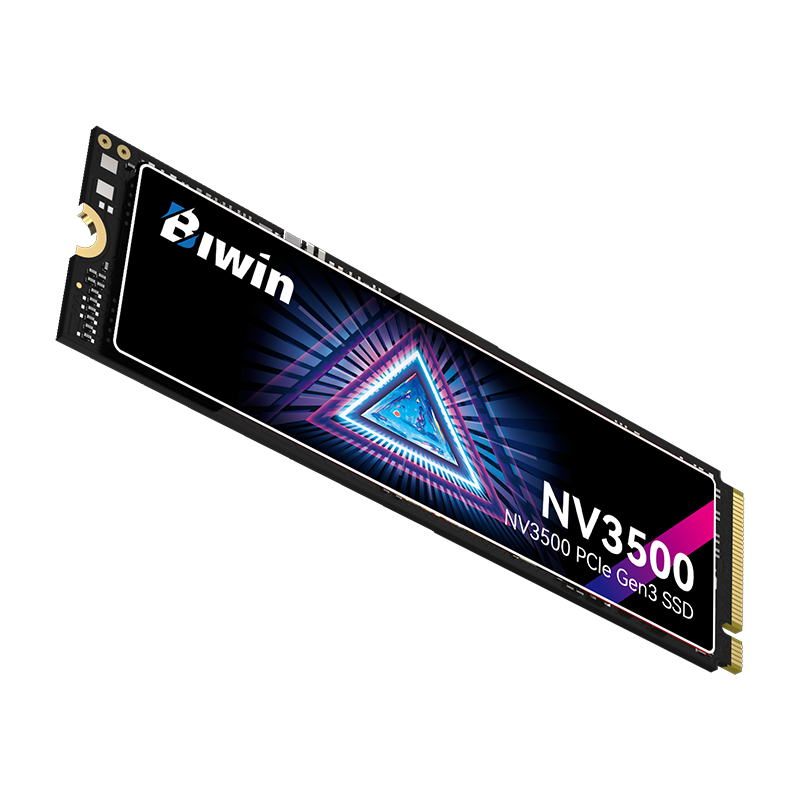

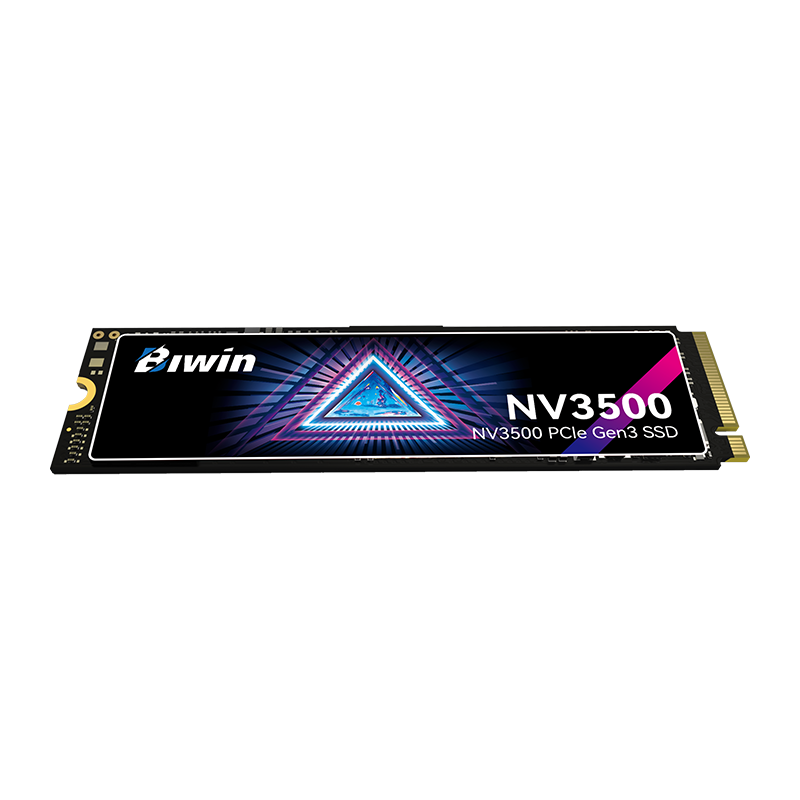

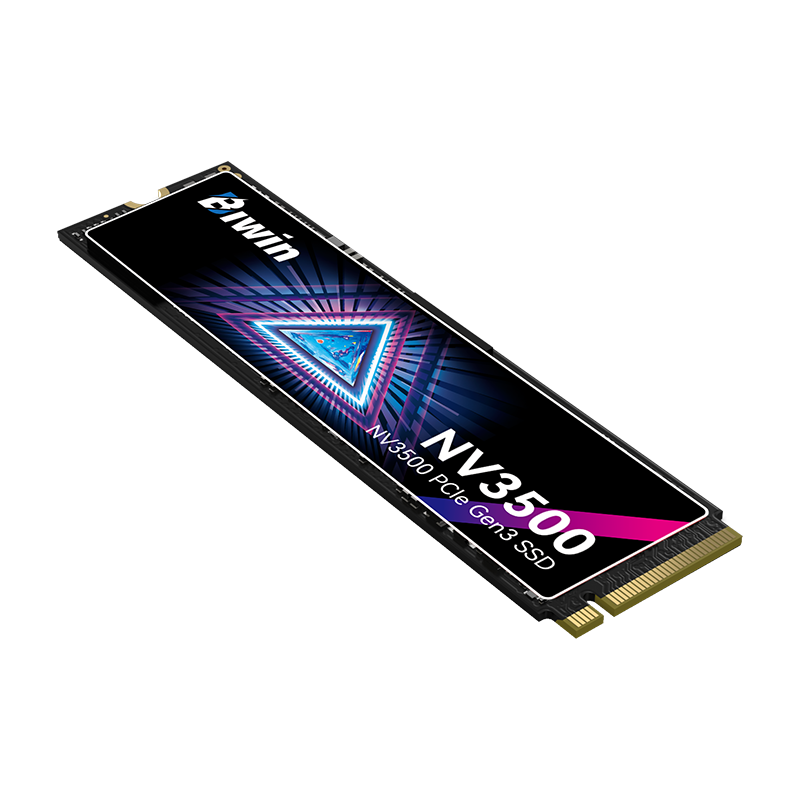

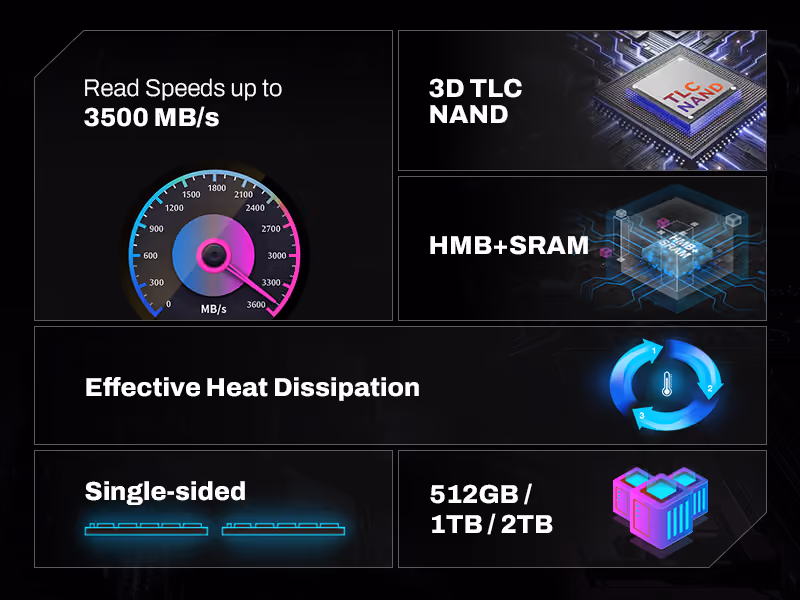

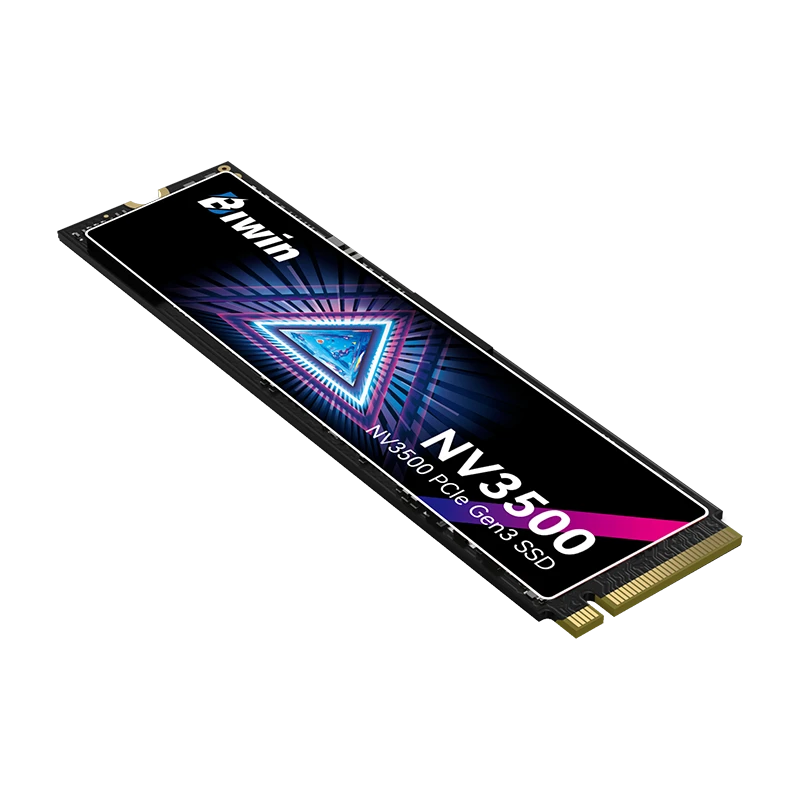

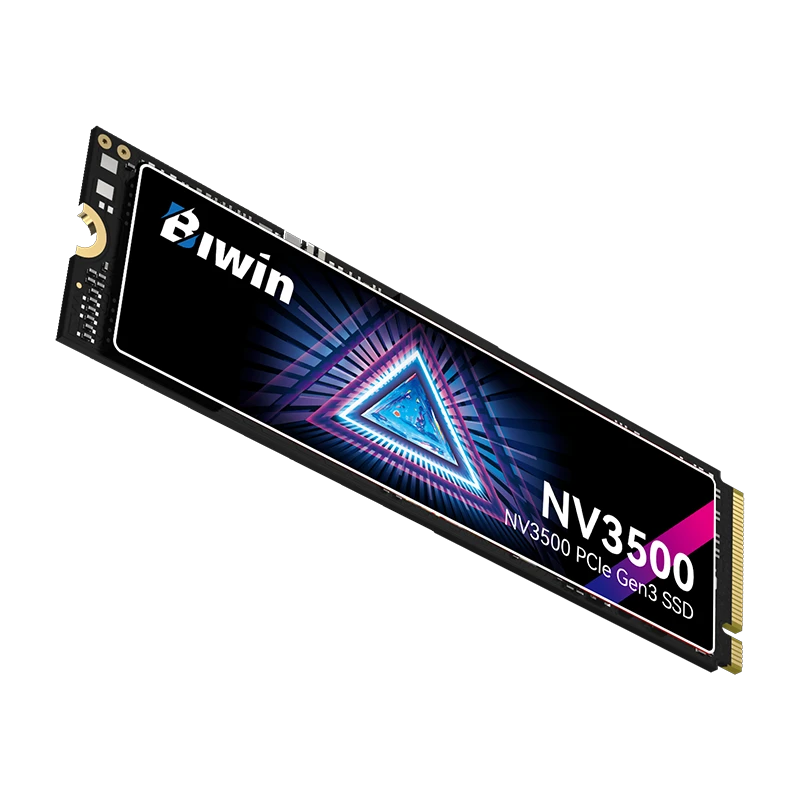

Black Opal NV3500 Gen3 SSD

  • Read speed up to 3500 MB/s
  • PCIe Gen3x4, NVMe 1.4, 2 2280
  • Single-sided design for wide compatibility

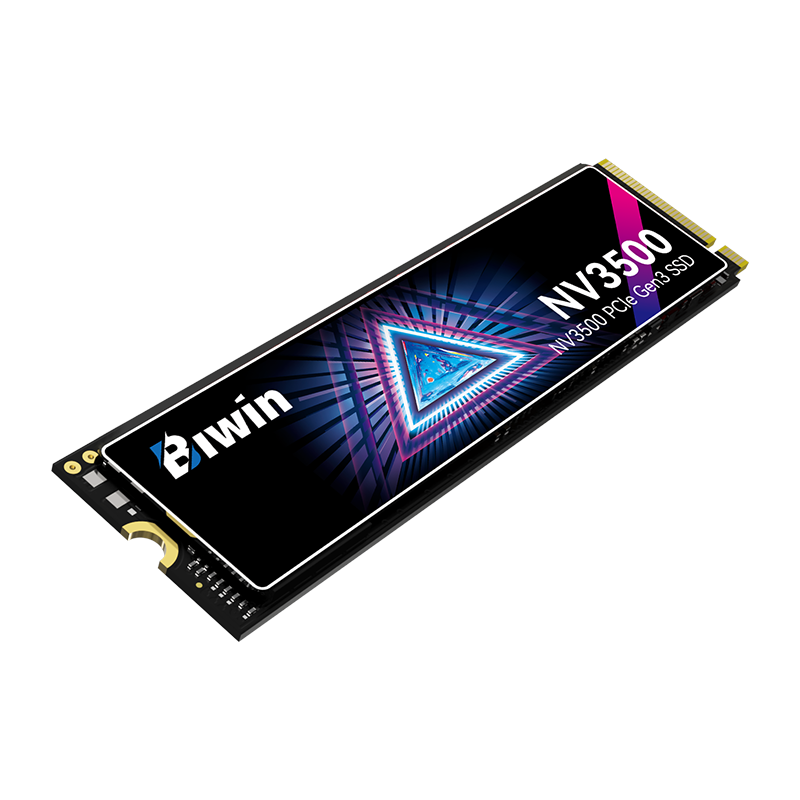

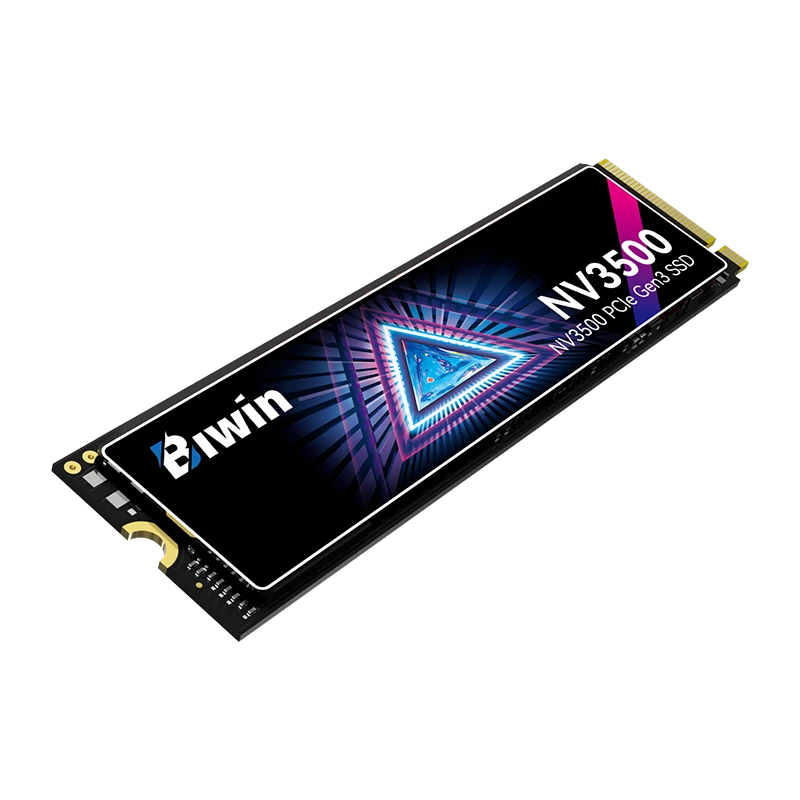

NV3500 PCIe 3.0 SSD

Biwin Black Opal NV3500 M.2 SSD offers read speed up to 3500 MB/s and write speed up to 3000 MB/s. NV3500 features PCIe Gen 3×4 interface and supports NVMe 1.4. With up to 2 TB available, Black Opal NV3500 uses a heat-dissipating graphene pad and a temperature control algorithm to ensure the SSD operates at its best. The single-sided design fits in desktops and laptops.

Top-Tier Gaming Performance

NV3500 utilizes the PCIe 3.0 Gen 3×4 interface and supports NVMe 1.4. Premium TLC NAND selected for NV3500 unleashes the interface’s potential to achieve a smooth gaming experience.

Intelligent Caching Mechanism, Accelerating the Speed

With HMB (Host Memory Buffer) technology, unique SRAM, and Smart Cache technology, NV3500 uses the unused system memory as a cache, significantly increasing load speed to achieve a smooth, low-latency, and fast-response experience.

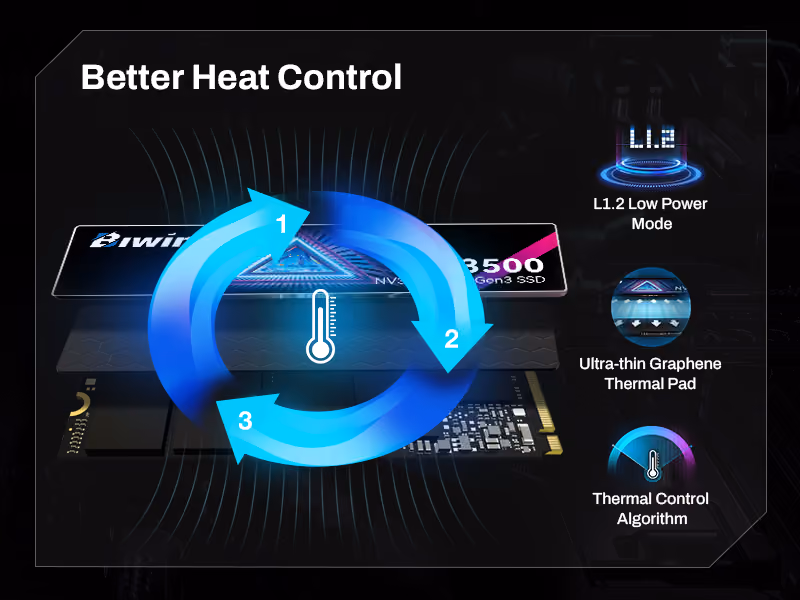

Excellent Heat Dissipation

NV3500 offers premium performance in heat dissipation through L1.2 low power mode, a thermal control algorithm, and an ultra-thin graphene pad, for the best experience.

Advanced Technologies for High-speed Data Transfer

NV3500 SSD comes with ECC (Error Correction Code) technology and 4K LDPC (Low-Density Parity-Check), ensuring best data safety. NV3500 also boosts durability with three key technologies, including Full Equalization Mode, Active Garbage Collection, and TRIM Command, to provide a more reliable storage solution.

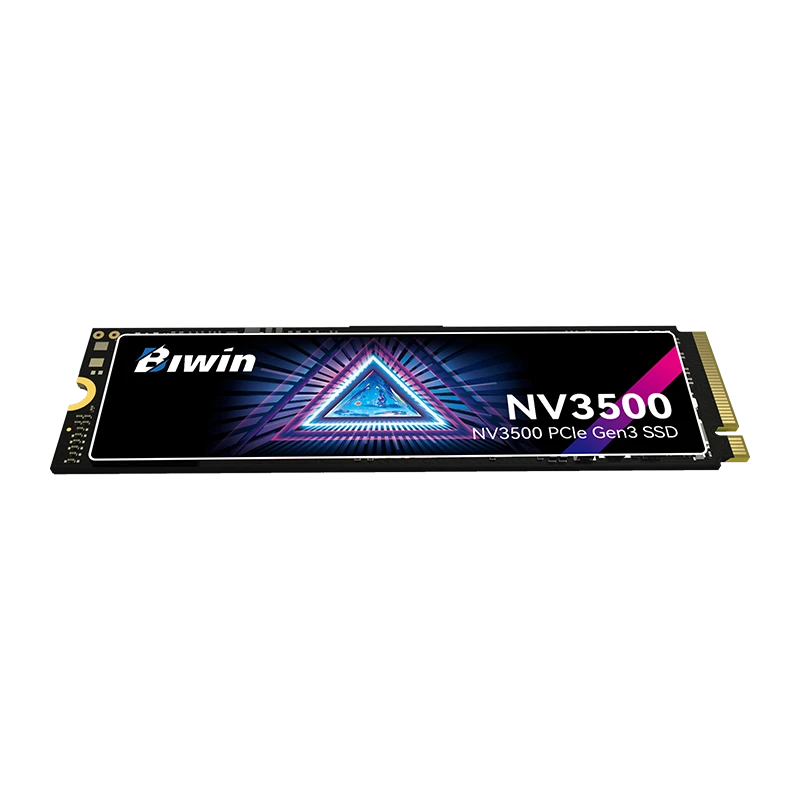

Single-Sided Design for Wide Compatibility

Black Opal NV3500, with a standard M.2 2280 single-sided design, offers an upgrade for desktops and is also suitable for capacity expansion in compact, portable devices like ultrabooks and laptops.

Exceptional Durability

NV3500 features exceptional duration and long product life. NV3500 offers a MTBF (Mean Time Between Failures) of up to 1.5 million hours, 1200 TBW for the 2 TB version and a 5-year limited warranty.

Multiple Capacity Options

The capacity options for NV3500 include 512 GB, 1 TB, and 2 TB, covering the need to store larger files for work, multimedia, audio, video, and games.

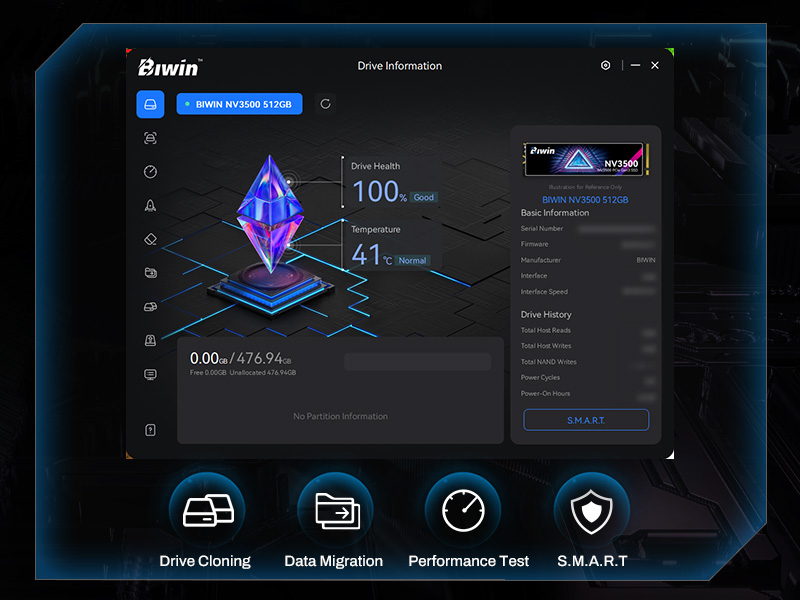

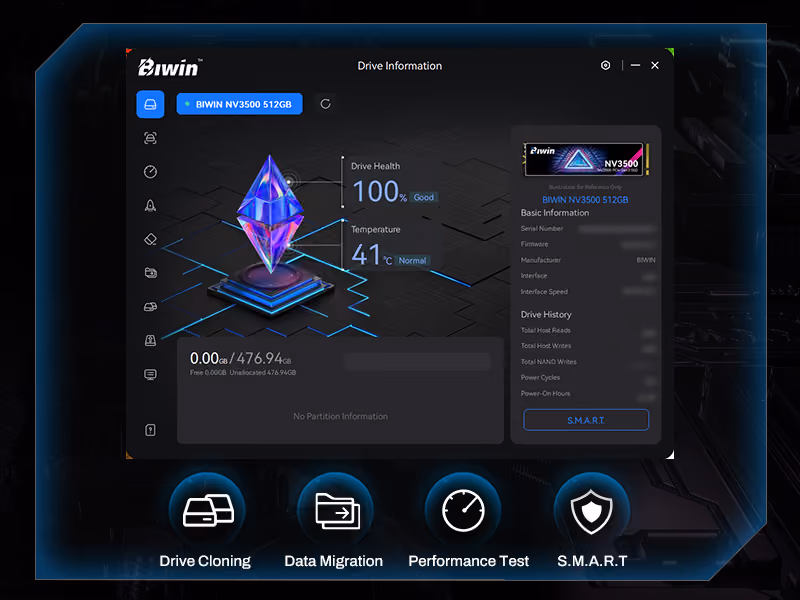

Biwin Intelligence Software

Biwin Intelligence is multifunctional management software for SSDs and portable SSDs, designed to support Biwin consumer-brand storage products. For a more convenient and more secure storage experience, this software helps users manage their drives with features like performance test, data migration, firmware update, and more.

Download:  Biwin Intelligence

For All Your Needs

NV3500 features superior performance including a great gaming experience, unleashing creativity in video editing, and achieving smooth operation of 3D modeling.

Solid Technology for Reliable Quality

NV3500 is built with solid technologies to ensure reliable quality. With our premium materials, precise chip packaging technology, and rigorous production testing, Biwin is able to provide you with a more durable, stable, and trustworthy product.

Series
Black Opal:Gaming
Category
Solid State Drives
Model Name
Biwin Black Opal NV3500
Form Factor
M.2 2280
Interface
PCIe Gen3x4, NVMe 1.4
DRAM Cache
DRAM-less
Capacity
512 GB
1 TB
2 TB
Sequential Read Speed (Up to)
3500 MB/s
3500 MB/s
3500 MB/s
Sequential Write Speed (Up to)
2500 MB/s
3000 MB/s
3000 MB/s
Random Read Speed (Up to)
300K IOPS
350K IOPS
350K IOPS
Random Write Speed (Up to)
280K IOPS
280K IOPS
280K IOPS
Dimensions
80.00 x 22.00 x 2.45 mm (single-sided)
Weight
≤ 9 g
Operating Temperature
0°C to +70°C
Storage Temperature
-40°C to +85°C
MTBF
1,500,000 hours
Certifications
CE, FCC, RoHS, CB, KCC, BSMI, VCCI, RCM, UKCA
Warranty
5-Year / 300 TBW
5-Year / 600 TBW
5-Year / 1200 TBW
Software Name
Versions
Date
Operate
Biwin Intelligence
2.0.0.1
2025-05-30
File Name
Date
Operate
Black Opal NV3500 Specifications
2025-05-12
Biwin SSD Quick Start Guide
2025-05-12
