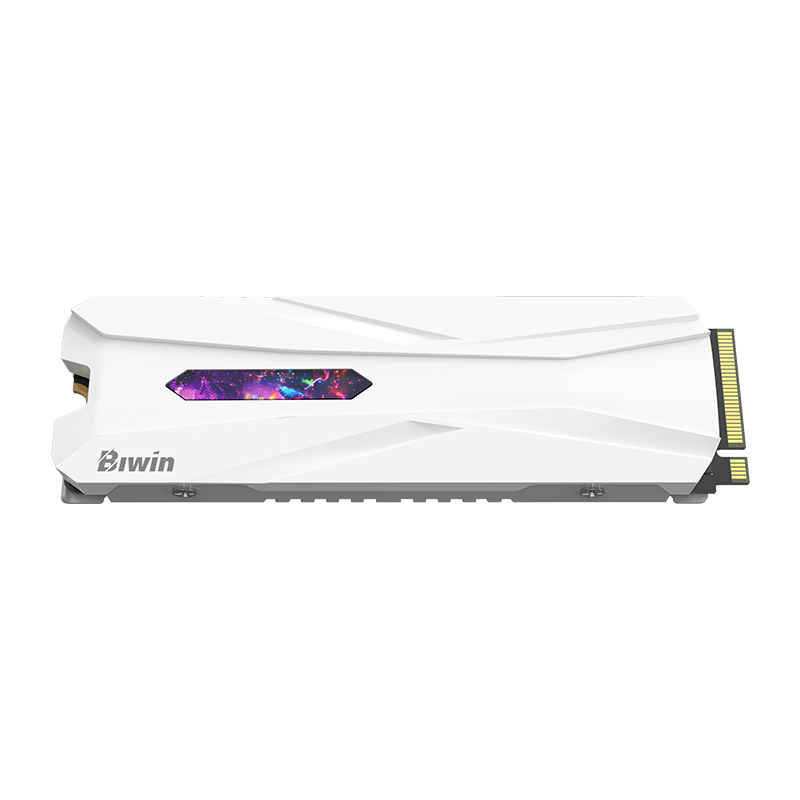

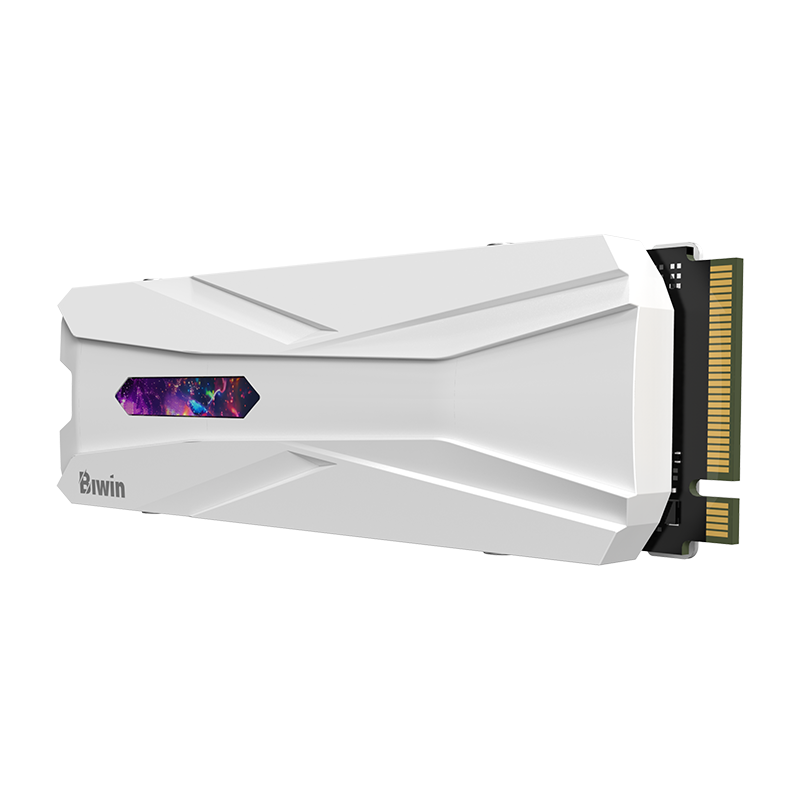

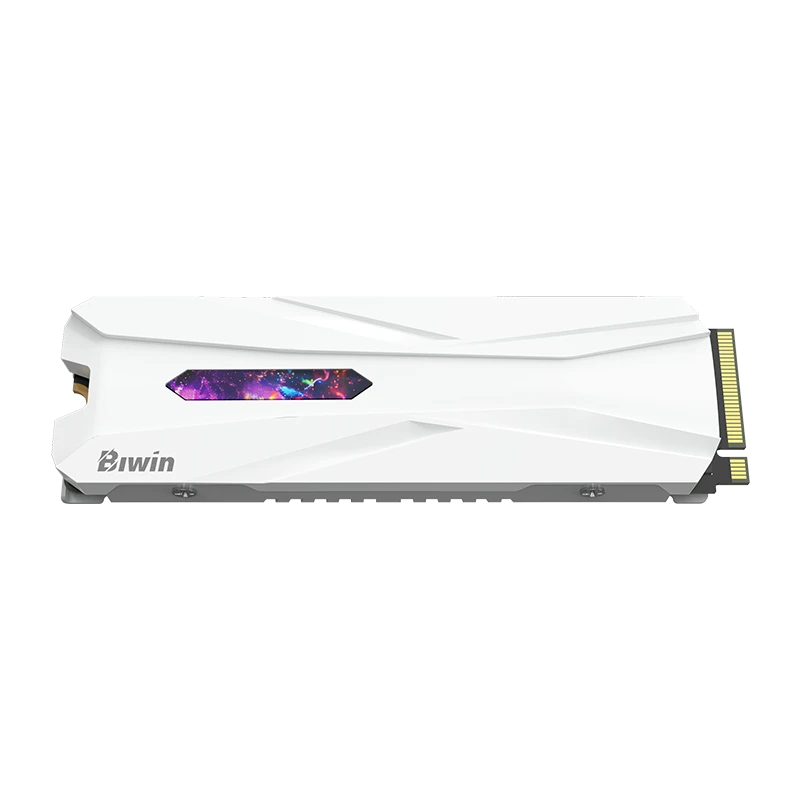

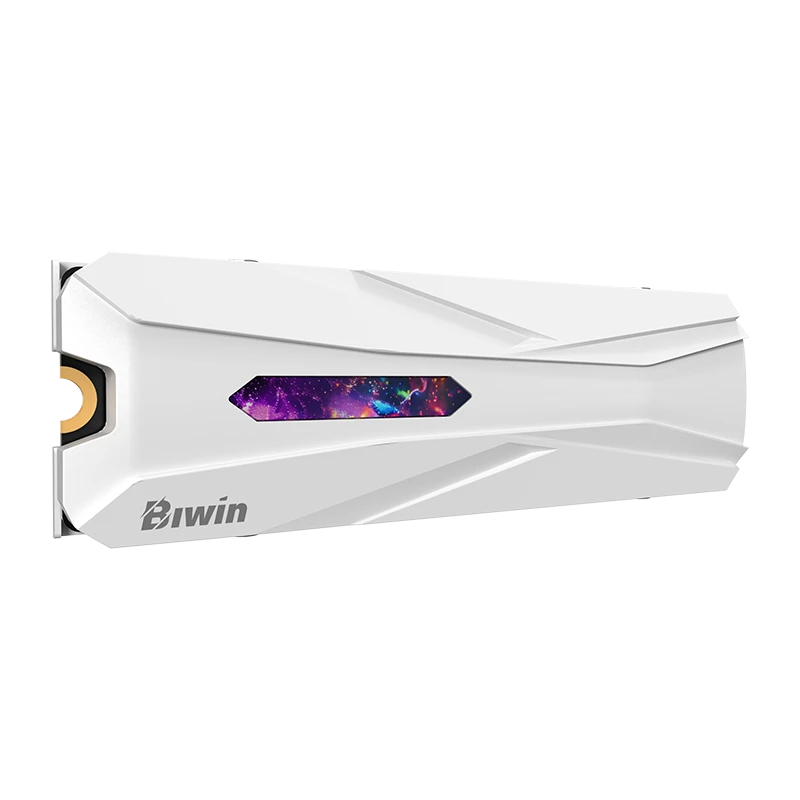

Black Opal X570H PRO SSD

  • PCIe Gen5×4, NVMe 2.0
  • Read/Write Speeds Up to 14000/13000 MB/s
  • Premium TLC NAND
  • Optimized Heatsink for Efficient Thermal Management
1-biwin-black-opal-x570h-pro-pcie-5-0-ssd-with-read-speeds-up-to-14000-mbs

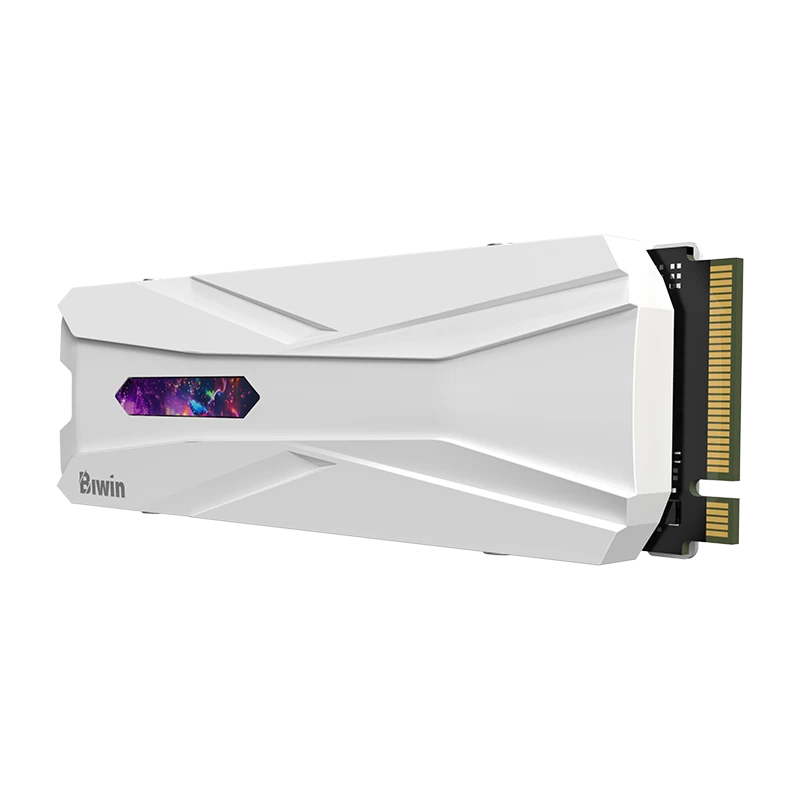

Biwin Black Opal X570H PRO SSD

Leveraging PCIe Gen5 ×4 and NVMe 2.0, Biwin Black Opal X570H PRO SSD achieves read speeds up to 14000 MB/s—twice the speed of PCIe 4.0 and four times the speed of PCIe 3.0. This breakthrough speed enables faster data transfers, reducing load times significantly and improving overall system responsiveness. Experience increased productivity and improved efficiency with storage designed to keep up with your most demanding games or workflow.

2-biwin-black-opal-x570h-pro-gen5-ssd-delivers-up-to-2000k-iops-read-and-1600k-iops-write

Elevate Your Performance with up to 4 GB Cache

Equipped with up to 4 GB of dedicated cache, the Black Opal X570H PRO delivers a powerful performance boost that accelerates data access while also extending the drive’s lifespan by minimizing direct writes to the NAND flash. With up to 2000K IOPS for random reads and 1600K IOPS for random writes, this SSD reduces latency and improves data access for faster performance even under more demanding gaming or workloads.

3-biwin-black-opal-x570h-pro-gen-5-ssd-with-6nm-controller-for-better-efficiency

6 nm Controller, Precision for Powerful Performance

The X570H PRO uses an advanced 6 nm controller that supports up to 8 flash memory channels to deliver exceptional data throughput. The 6 nm process optimizes efficiency, ensuring high performance with lower power consumption. By optimizing the data management process, the controller reduces latency, improves responsiveness, and delivers stable performance even under heavy workloads, such as gaming, content creation, and other data-intensive applications.

4-biwin-black-opal-x570h-pro-gen-5-nvme-ssd-with-premium-heatsink-for-better-heat-dissipation

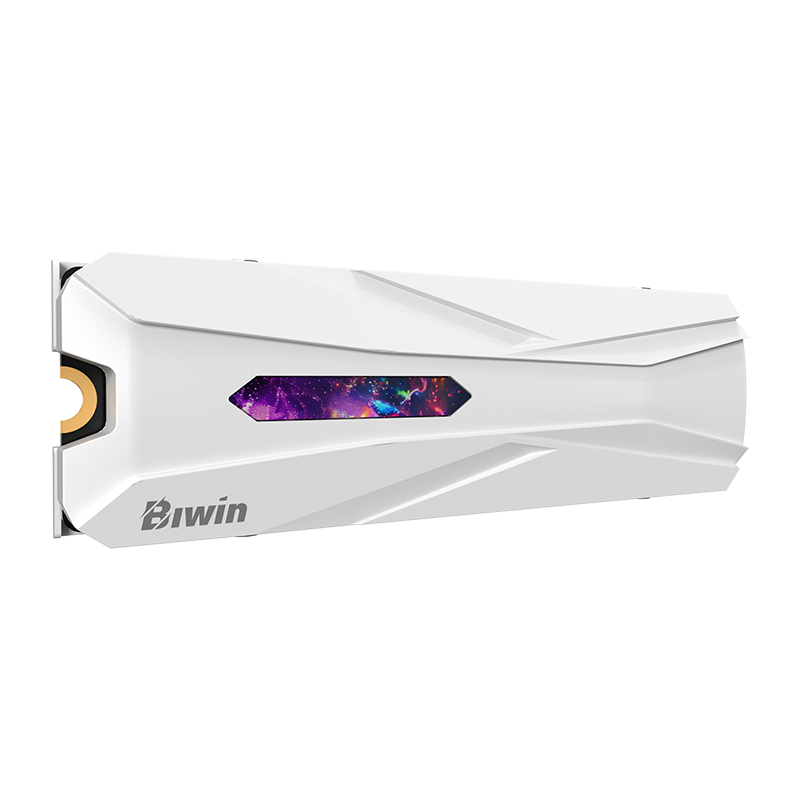

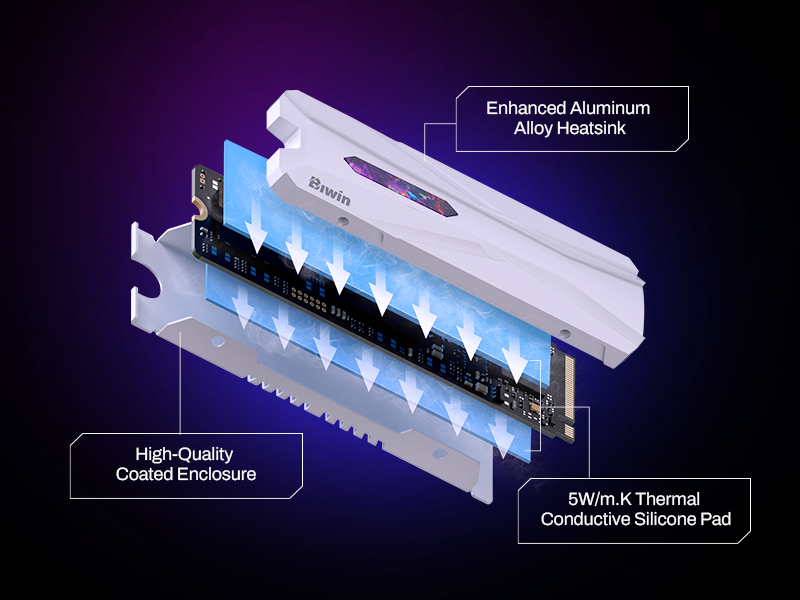

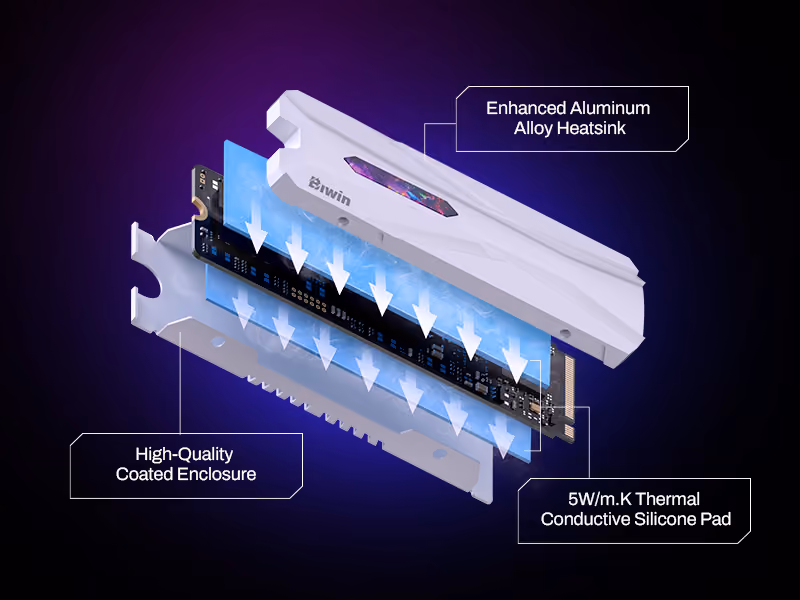

Advanced Heat Dissipation for Long-Term Efficiency

The Black Opal X570H PRO integrates an advanced thermal control algorithm with a premium, stylish heatsink for optimal heat dissipation. This intelligent cooling solution actively manages the drive’s temperature, preventing thermal throttling and maintaining optimal performance even under demanding conditions. Stay cool and perform at your best with Biwin X570H PRO.

5-biwin-black-opal-x570h-pro-pcie-gen-5-ssd-with-capacity-up-to-4-tb

Spacious Storage for High-Performance

The Biwin Black opal X570H PRO offers spacious storage capacities up to 4 TB, giving you plenty of room for all your important files, high-resolution games, and resource-intensive applications. With the Biwin X570H PRO, you’ll enjoy the benefits of expansive storage and reliable performance without worrying about space limitations.

6-biwin-black-opal-x570h-pro-pcie-5-0-m-2-ssd-with-tlc-nand-flash-chips

High Quality, Crafted for Consistent Excellence

Built with high-quality TLC NAND flash chips, the X570H PRO offers an optimal balance of performance, endurance, and data integrity. Whether you’re working with large files, running demanding applications, or gaming, the X570H PRO brings you consistent, high-performance storage that lasts.

7-biwin-black-opa-x570h-pro-gen-5-m-2-ssd-with-exceptional-versatility-for-demanding-applications

Wide Compatibility to Fit Existing Setups

The X570H PRO offers exceptional versatility, with full support for PCIe 5.0 while remaining backward-compatible with PCIe 4.0 and PCIe 3.0. When upgrading PCs, the Biwin X570H PRO ensures seamless integration into your existing setup. With fast and reliable performance, the Biwin X570H PRO guarantees an optimal storage solution across all platforms.

8-biwin-black-opa-x570h-pro-pcie-5-0-ssd-with-a-5-year-warranty

Reliability Guaranteed, Backed by Warranty

Designed for long-term reliability, the Black Opal X570H PRO is backed by a 5-year warranty and an outstanding TBW rating up to 3000. From the high-performance controller to the long-lasting NAND flash, every component is designed to deliver peak performance throughout its lifetime. Rigorously tested to meet stringent quality standards, the durable Biwin X570H PRO ensures top-notch performance for years to come.

9-biwin-black-opa-x570h-pro-gen5-ssd-with-free-customized-version-of-acronis-true-image

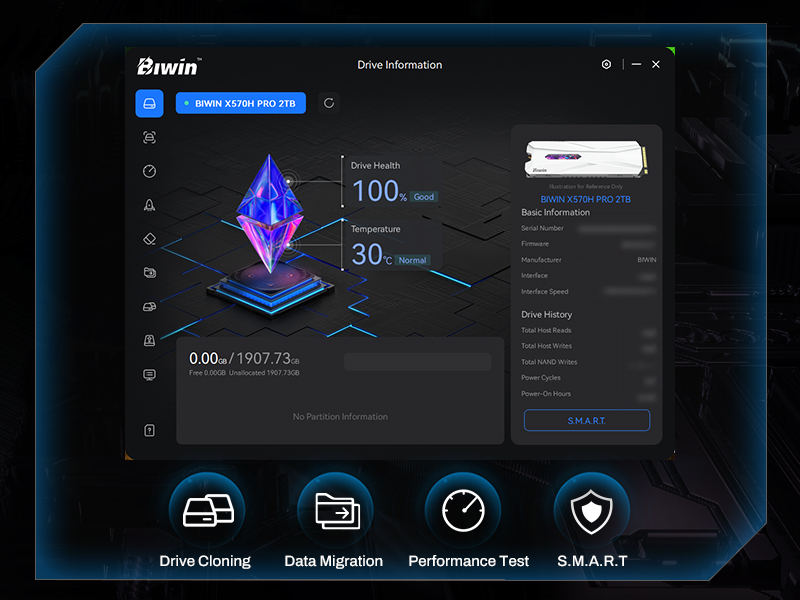

Easier Data Backup and Faster Transfer with Free Custom Software

The X570H PRO comes with our free customized version of Acronis True Image for easier and more reliable data transfer, full system backup and recovery, anti-malware protection, and more. Peak performance, enhanced reliability, and trusted data protection for a truly secure and optimized storage solution.

Download: go.acronis.com/Biwin

Series

Category

Solid State Drives

Model Name

Biwin Black Opal X570H PRO

Form Factor

Interface

,

DRAM Cache

1 GB, 2 GB, 4 GB

Capacity

, ,

Sequential Read (Up to)

14000 MB/s, 14000 MB/s, 14000 MB/s

Sequential Write (Up to)

10500 MB/s, 13000 MB/s, 13000 MB/s

Random Read 4K (Up to)

1600K IOPS, 2000K IOPS, 2000K IOPS

Random Write 4K (Up to)

1600K IOPS, 1600K IOPS, 1600K IOPS

Dimensions

80.50 × 23.20 × 9.50 mm (single-sided)

Weight

< 50 g

Operating Temperature

0°C to +70°C

Storage Temperature

-40°C to +85°C

MTBF

1,500,000 hours

Certifications

RoHS, FCC, CE, CB, KCC, BSMI, VCCI, RCM, UKCA

Warranty

5-Year / 750 TBW, 5-Year / 1500 TBW, 5-Year / 3000 TBW

* 5 years or TBW, whichever comes first.
* Product images shown above are for reference only. For specifics, please refer to the actual product.
* Product packaging, appearance, and additional software may vary due to shipping dates and available inventory.
* Maintenance and future updates are required throughout the product life cycle. Specifications are subject to change without notice.
